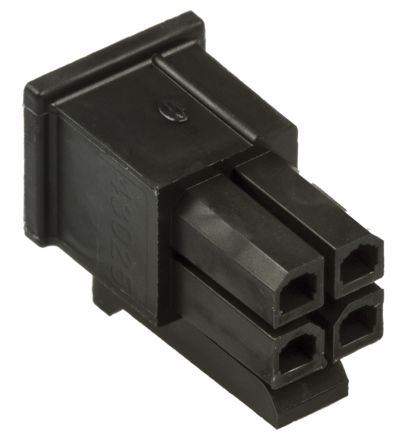

Molex 43025-0400
Manufacturer No: 43025-0400
Manufacturer: Molex
Package:
Description: MOLEX - 43025-0400 - Connector Housing, Dual Row, Micro-Fit 3.0 43025 Series, Receptacle, 4 Ways, 3 mm
43025-0400 Datasheet
Share
Product Attributes Support
- Factory Lead Time：7 Weeks
- Contact Plating：Tin
- Mount：Cable, Free Hanging
- Material：Polyester
- Contact Materials：Bronze, Tin
- Packaging：Bulk
- Published：2006
- Pbfree Code：yes
- Part Status：Active
- Termination：Crimp
- Connector Type：Power, Rectangular
- Max Operating Temperature：105°C
- Min Operating Temperature：-40°C
- Color：Black
- Number of Rows：2
- Additional Feature：MICRO-FIT 3.0, POLARIZED
- Voltage - Rated DC：250V
- MIL Conformance：NO
- DIN Conformance：NO
- IEC Conformance：NO
- Filter Feature：NO
- Mixed Contacts：NO
- Option：GENERAL PURPOSE
- Pitch：3mm
- Total Number of Contacts：4
- Orientation：Straight
- Depth：14mm
- Current Rating：5A
- Number of Conductors：ONE
- Reference Standard：UL
- Voltage - Rated AC：250V
- Reliability：COMMERCIAL
- Approval Agency：CSA, TUV, UL
- Contact Gender：Female
- Contact Style：SQ PIN-SKT
- Contact Resistance：10mOhm
- Insulation Resistance：1GOhm
- Body/Shell Style：RECEPTACLE
- Number of Circuits：4
- Max Voltage Rating (AC)：600V
- Number of Poles：4
- Max Voltage Rating (DC)：600.6kV
- Halogen Free：Low Halogen
- Glow Wire Compliant：Non-compliant
- Voltage - Working：250V
- Length：6.85mm
- Width：11.56mm
- REACH SVHC：Unknown
- Radiation Hardening：No
- RoHS Status：RoHS Compliant
- Flammability Rating：UL94 V-0
- Lead Free：Lead Free
IN STOCK：2305
Increments of:1
- 1+： $0.31323
- 10+： $0.29550
- 100+： $0.27877
- 500+： $0.26299
- 1000+： $0.24811
Subtotal: $ 0.31323
