PULS, LP CPS20.241

Manufacturer No: CPS20.241

Manufacturer: PULS, LP

Package:

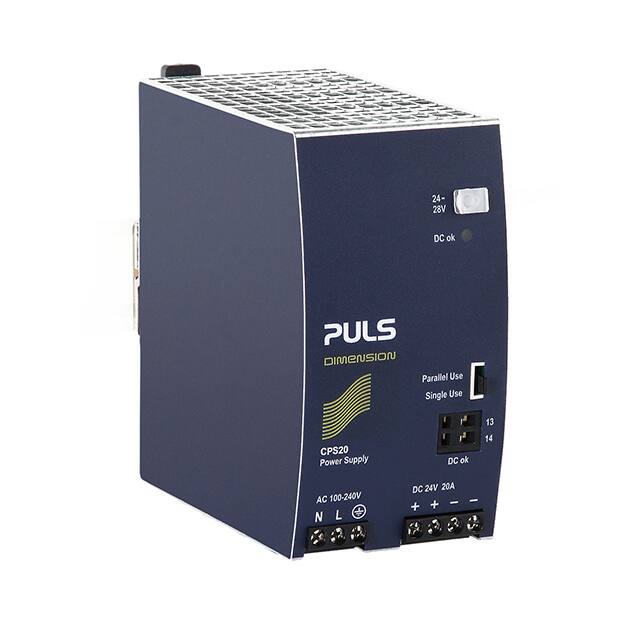

Description: Switched-mode power supply 24 VDC 480 W, CPS20.241, Puls

Product Attributes Support

Factory Lead Time：2 Weeks
Mount：Panel
Mounting Type：DIN Rail
Weight：1kg
Voltage-Input：100V~264VAC
Operating Temperature：-25°C~70°C With Derating
Series：DIMENSION C (480W)
Size / Dimension：5.00Lx2.56W x 4.88 H 127.0mmx65.0mmx124.0mm
Pbfree Code：yes
Part Status：Active
Moisture Sensitivity Level (MSL)：Not Applicable
Number of Terminations：10
Type：Enclosed
Applications：Hazardous Locations, ITE (Commercial)
Power (Watts)：480W
Additional Feature：ALSO AVAIALBE WITH DIFFE MOUNITING AND DIFF MAX TEMP
Terminal Position：UNSPECIFIED
Terminal Form：UNSPECIFIED
Peak Reflow Temperature (Cel)：NOT SPECIFIED
Number of Functions：1
Depth：127mm
Reach Compliance Code：not_compliant
Time@Peak Reflow Temperature-Max (s)：NOT SPECIFIED
Number of Outputs：1
Approval Agency：cCSAus, CE, cULus, cURus
Efficiency：94%
Voltage - Isolation：3kV
Output Voltage：24V
Input Voltage-Nom：100V
Trim/Adjustable Output：YES
Current - Output (Max)：20A
Output Current：20A
Max Output Voltage：28V
Min Input Voltage：100V
Max Input Voltage：240V
Total Power Output-Max：576W
Min Output Voltage：24V
Features：Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
RoHS Status：RoHS Compliant
Ratings：IP20
