PULS, LP ML30.241
Manufacturer No: ML30.241
Manufacturer: PULS, LP
Package:

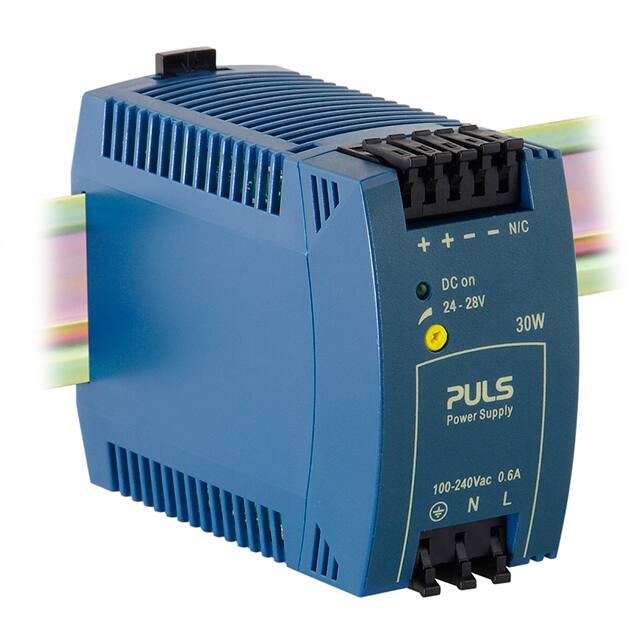

Description: Switched-mode power supply 24 VDC 30 W, ML30.241, Puls
ML30.241 Datasheet
Share
Product Attributes Support
- Factory Lead Time：2 Weeks
- Mounting Type：DIN Rail
- Surface Mount：NO
- Voltage-Input：85V~264VAC
- Voltage-Output 1：24V
- Operating Temperature：0°C~70°C With Derating
- Series：MiniLine-2 (30W)
- Size / Dimension：3.58Lx1.77W x 2.95 H 91.0mmx45.0mmx75.0mm
- Part Status：Active
- Moisture Sensitivity Level (MSL)：Not Applicable
- Number of Terminations：7
- ECCN Code：EAR99
- Type：Enclosed
- Applications：ITE (Commercial)
- Power (Watts)：30W
- Additional Feature：ALSO OPERATES IN 88 TO 375VDC
- Terminal Position：UNSPECIFIED
- Terminal Form：UNSPECIFIED
- Peak Reflow Temperature (Cel)：NOT SPECIFIED
- Number of Functions：1
- Time@Peak Reflow Temperature-Max (s)：NOT SPECIFIED
- JESD-30 Code：R-PXMA-X7
- Number of Outputs：1
- Approval Agency：CB, cCSAus, CE, cULus, cURus
- Efficiency：89.4%
- Voltage - Isolation：500V
- Output Voltage：24V
- Input Voltage-Nom：100V
- Trim/Adjustable Output：YES
- Current - Output (Max)：1.3A
- Total Power Output-Max：30W
- Features：Adjustable Output, DC Input Capable, Load Sharing, Universal Input
- RoHS Status：RoHS Compliant
